- Gold-gold contact points ensure stability and service life, mainly for civil and commercial applications
- Smooth operation, compact structure, low torque, compatible with data bus protocol
- The use of colored conductors for stator and rotor lines makes circuit connections simpler
- The conductive ring is designed with a 90 degree angle V row groove for smooth rotation, low torque and low electrical noise
- Product monolithic structure, advanced fiber brush technology, branch temple power, signal mixed transmission

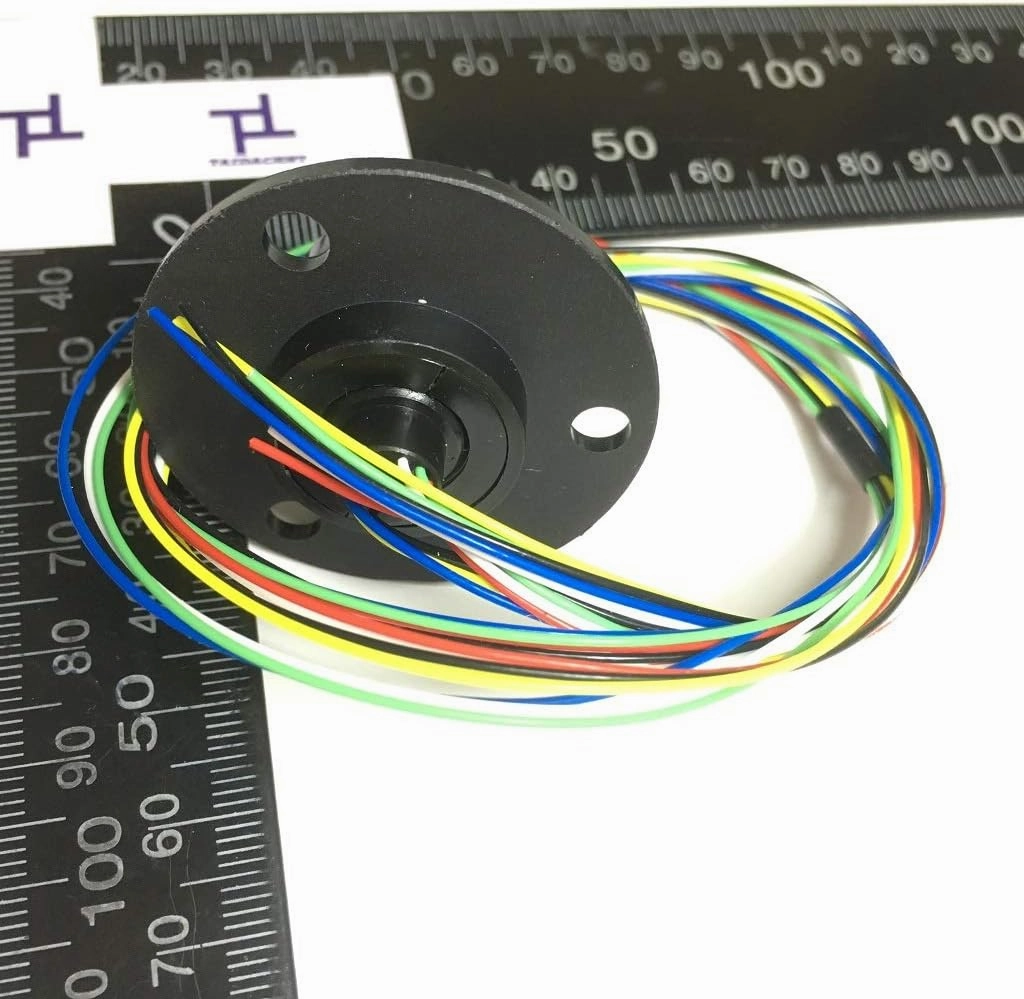

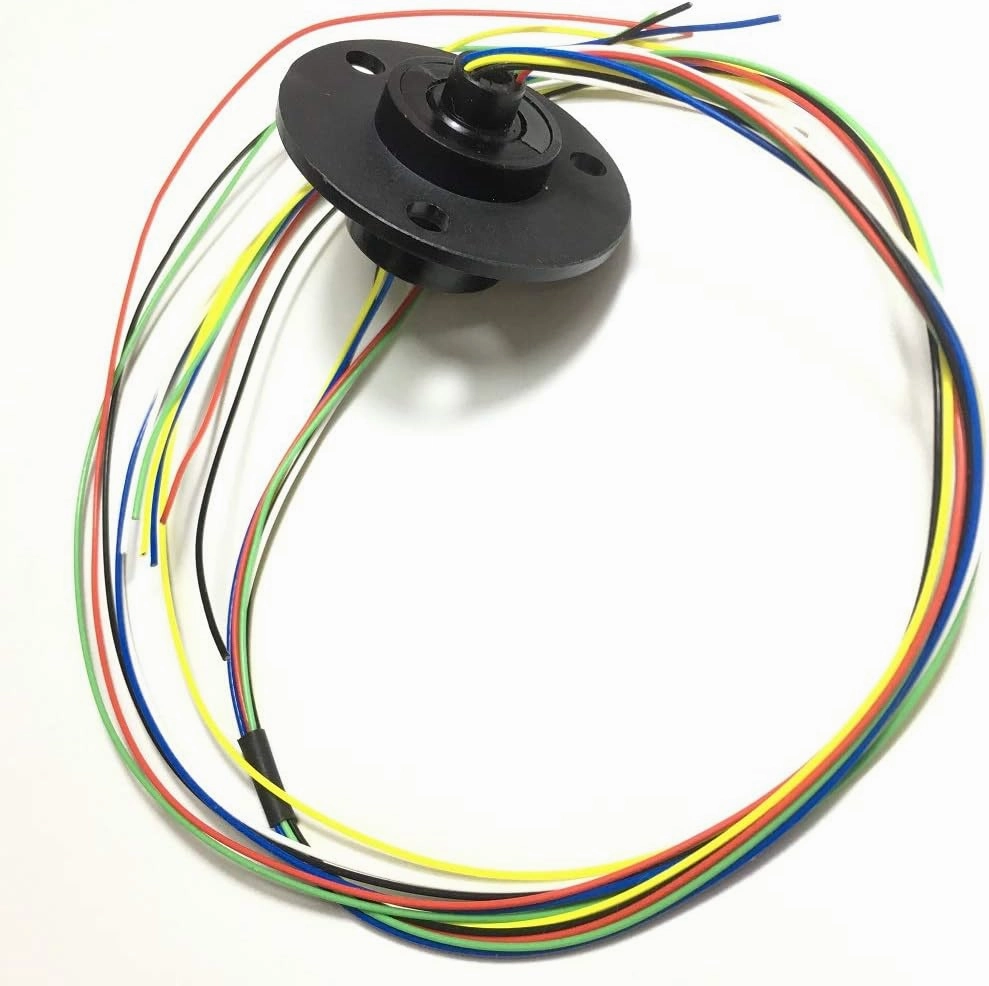

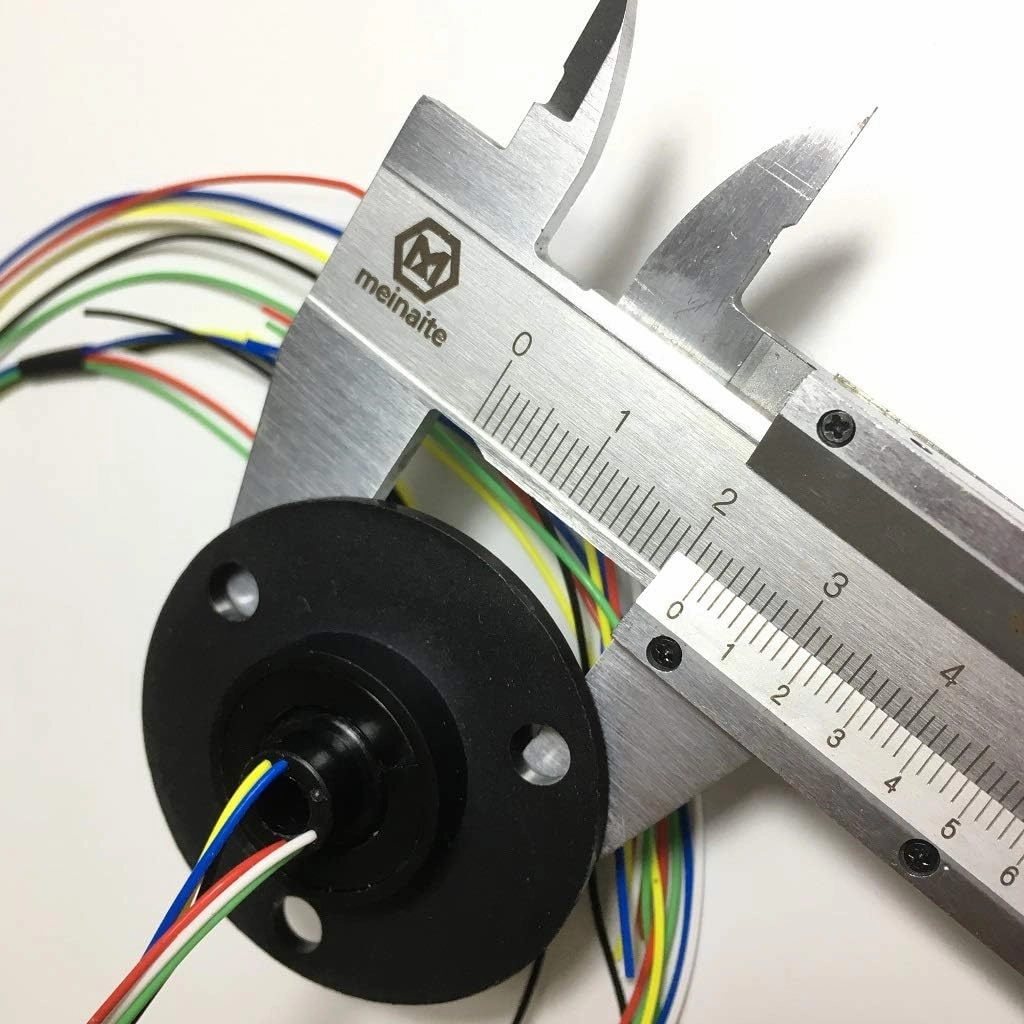

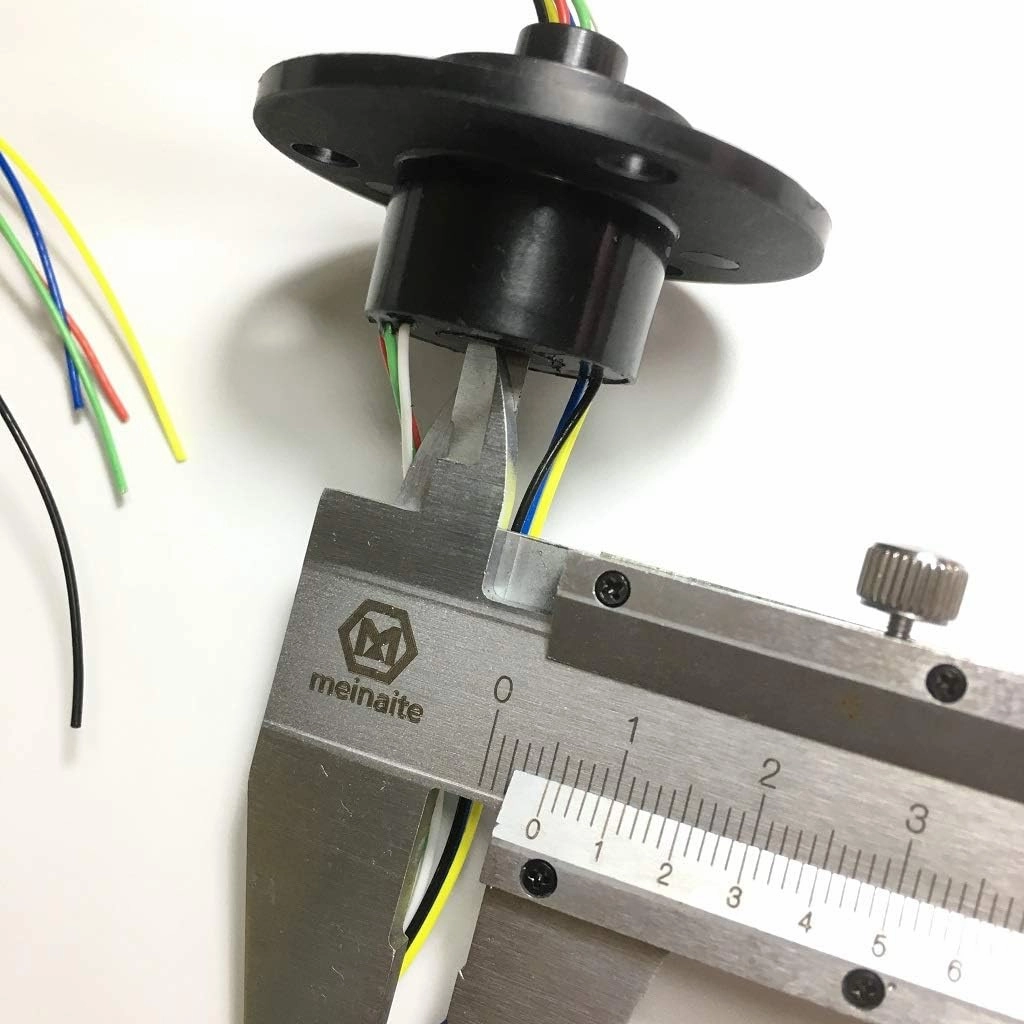

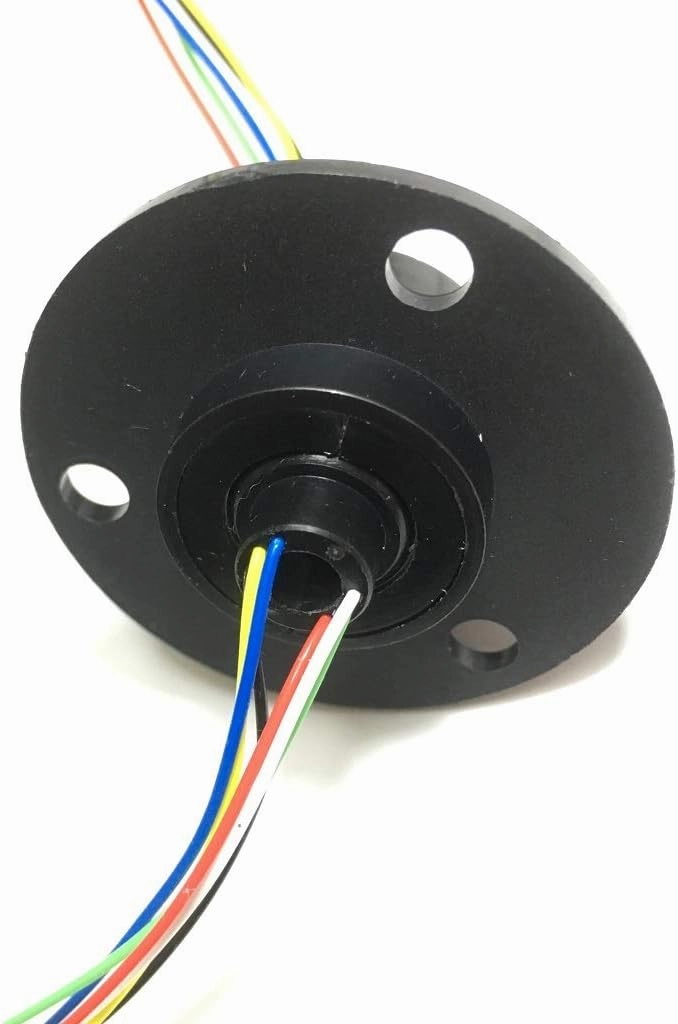

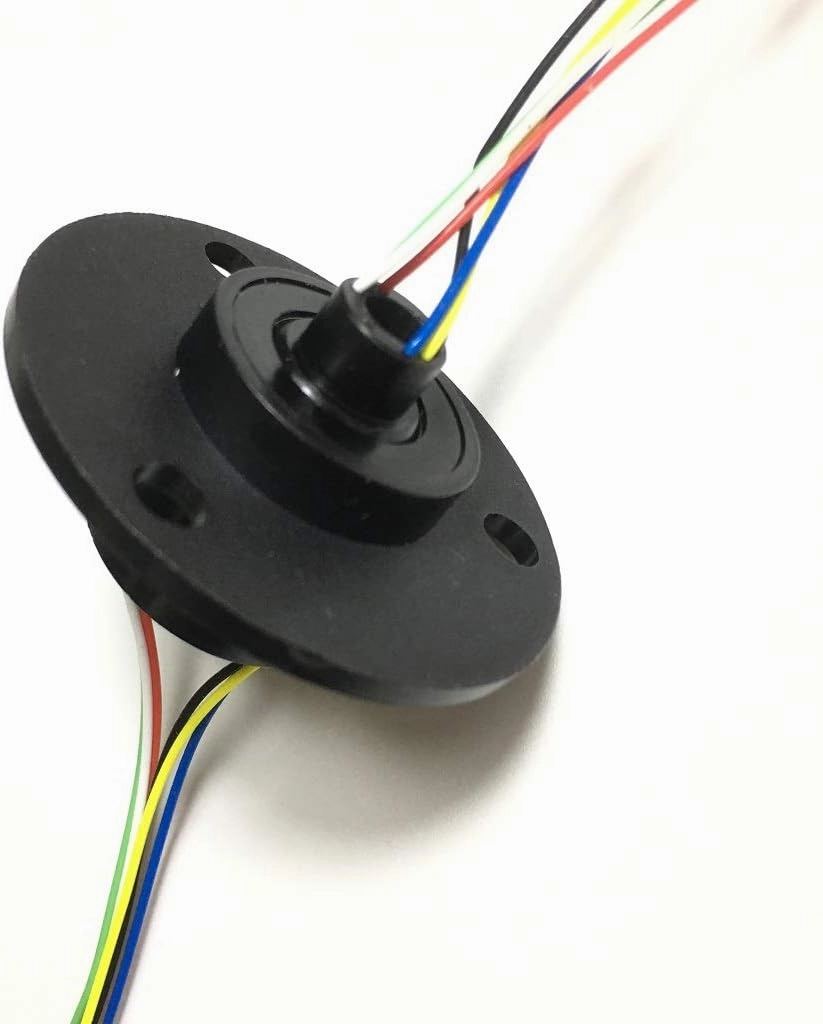

Product Name: Through Hole Slip Ring
Speed: 250 rev / min
Protection level: IP54
Insulation resistance: 500MQ@500VDC
Working life: ≥ 5 million rpm
Bearing: high precision ball bearing
Wire Specifications: Please consult us
Mechanical vibration: MIL-SID-810E
Number of channels: 1-36 road
Rated current: 10A
Rated voltage: 380V
Contact material: precious metal
Housing Material: Engineering Plastics
Torque: 0.01N.M
Working temperature: -40 ° C ~ 80 ° C
Relative humidity: 60%
Wire length: 300mm
Product features
Gold-gold contact points ensure stability and service life, mainly for civil and commercial applications
Smooth operation, compact structure, low torque, compatible with data bus protocol
The use of colored conductors for stator and rotor lines makes circuit connections simpler
The conductive ring is designed with a 90 degree angle V row groove for smooth rotation, low torque and low electrical noise.
Product monolithic structure, advanced fiber brush technology, branch temple power, signal mixed transmission
Life depends on the working environment and speed
Application field
cloud operation
Electrical test equipment
Manufacturing and processing control equipment
Medical equipment
CCTV Security Monitoring Equipment
Robot
Exhibition / Display Equipment
Rotating table
Small wind turbines
Radar antenna
