Name: Microchip PIC16C505-04/SL 8 Bit MCU One Time Programmable PIC16 Family PIC16C5x Series Microcontrollers 4 MHz 1.5 KB
SKU: 809596

Microchip PIC16C505-04/SL 8 Bit MCU One Time Programmable PIC16 Family PIC16C5x Series Microcontrollers 4 MHz 1.5 KB

$ 241.51

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The PIC16C505-04/SL is a PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS one time programmable (OTP) based Microcontroller packs powerful PICÂ®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 1.5kB of addressable program memory size, 72bytes of data memory size and 11 general-purpose I/O pins. This device operates at a maximum frequency of 4MHz with wide operating voltage of 2.5 to 5.5V.

Simple 33 (12-bit wide) instruction set
2 level hardware stack
In-circuit serial programming (ICSPâ�¢)
Power-on reset (POR)
Device reset timer (DRT)
Watchdog timer (WDT)
Programmable code protection
Internal weak pull-ups on I/O pins
Wake-up from Sleep on pin change
Power-saving sleep mode
One 8-bit timer

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16C505-04/SL
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

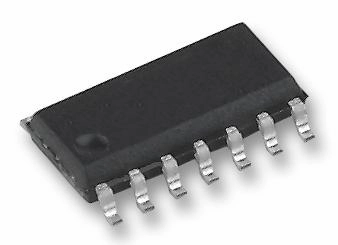

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
