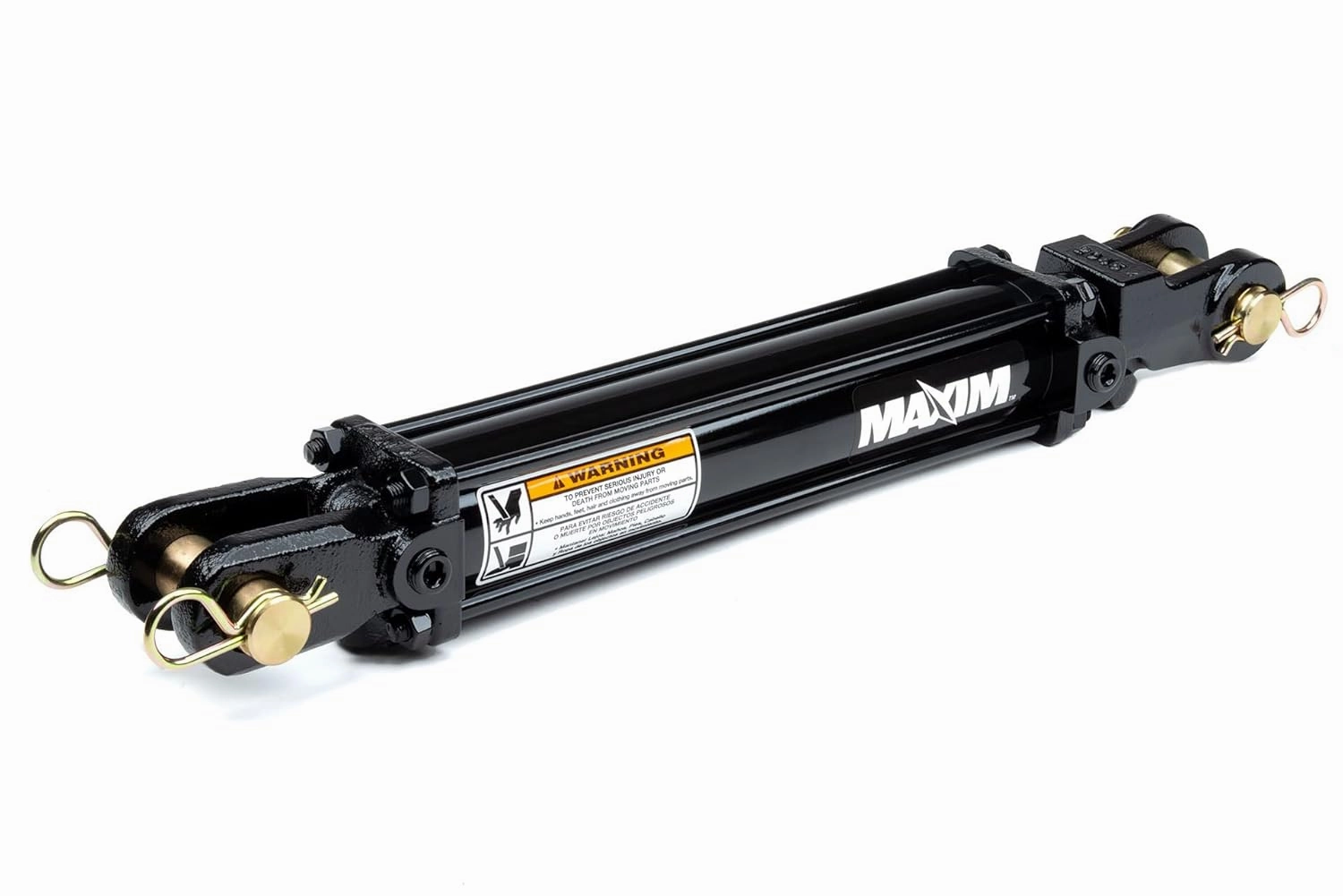

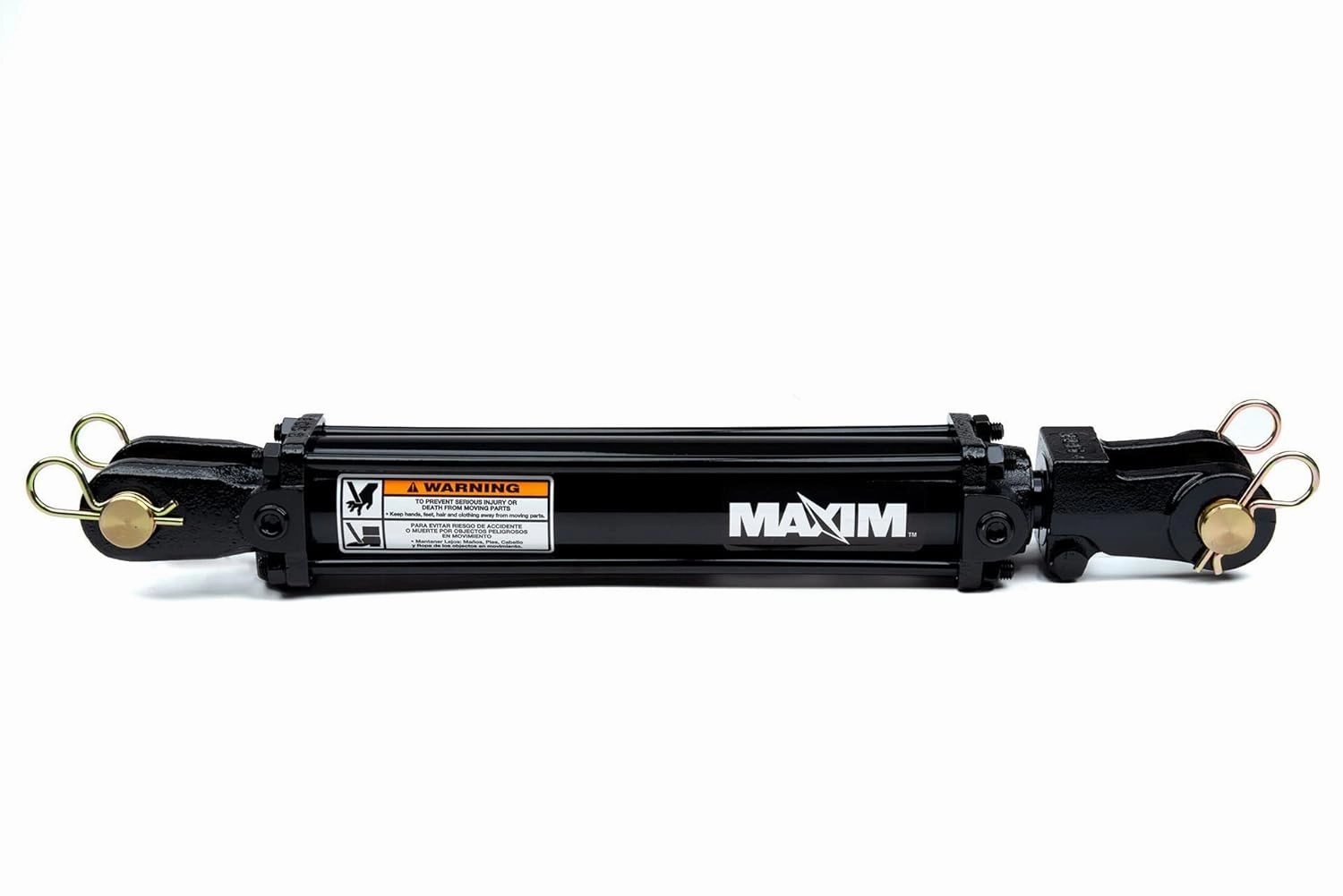

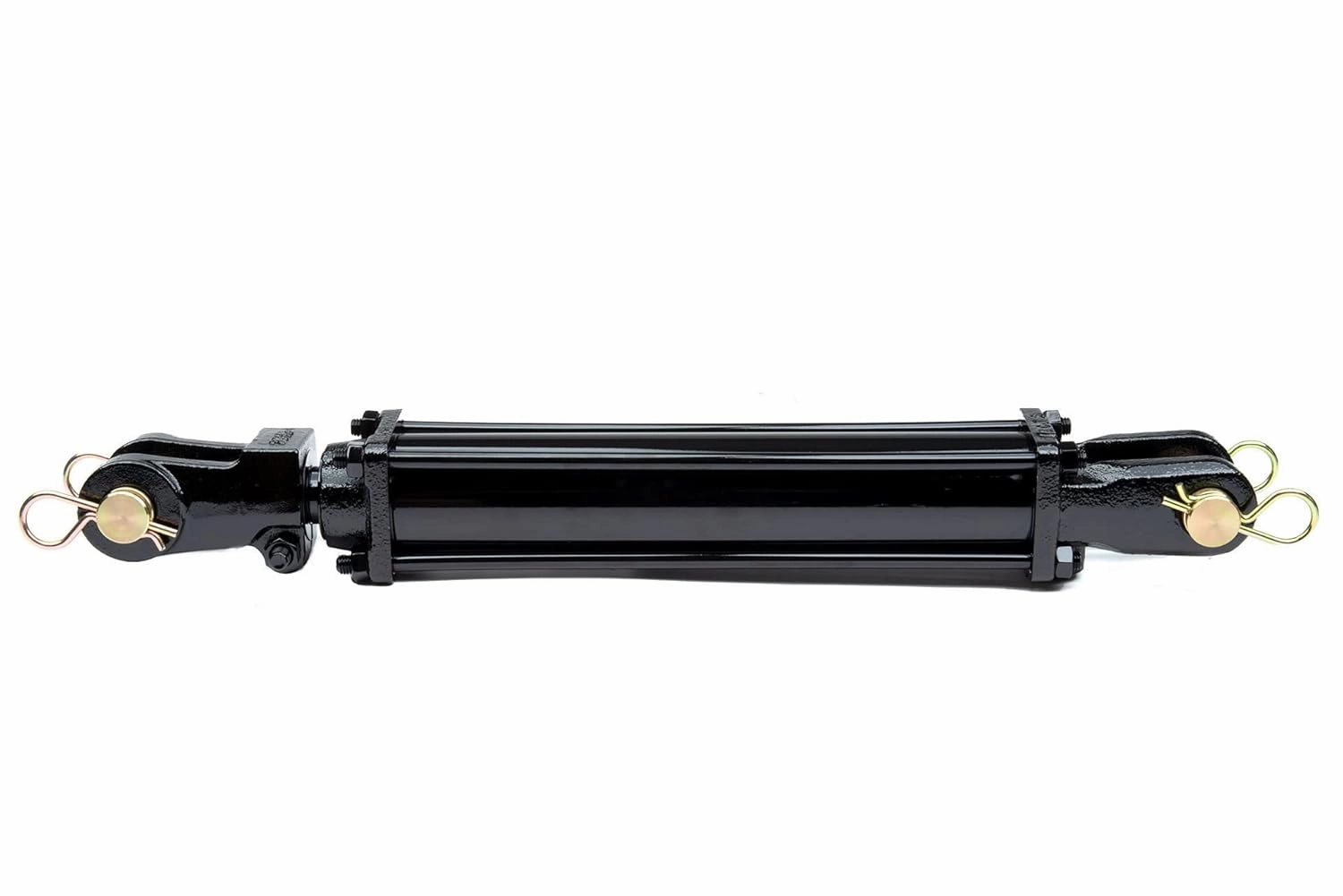

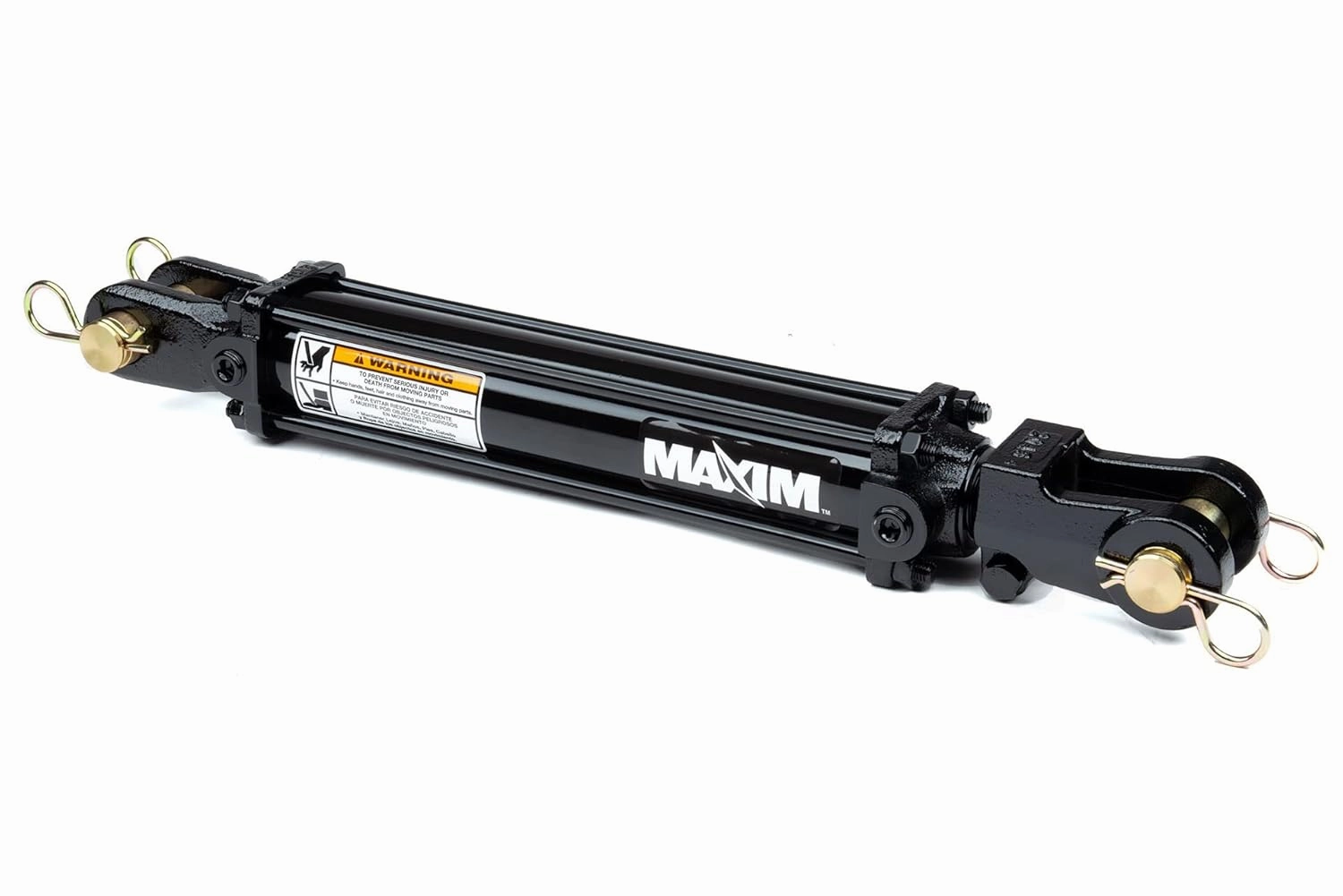

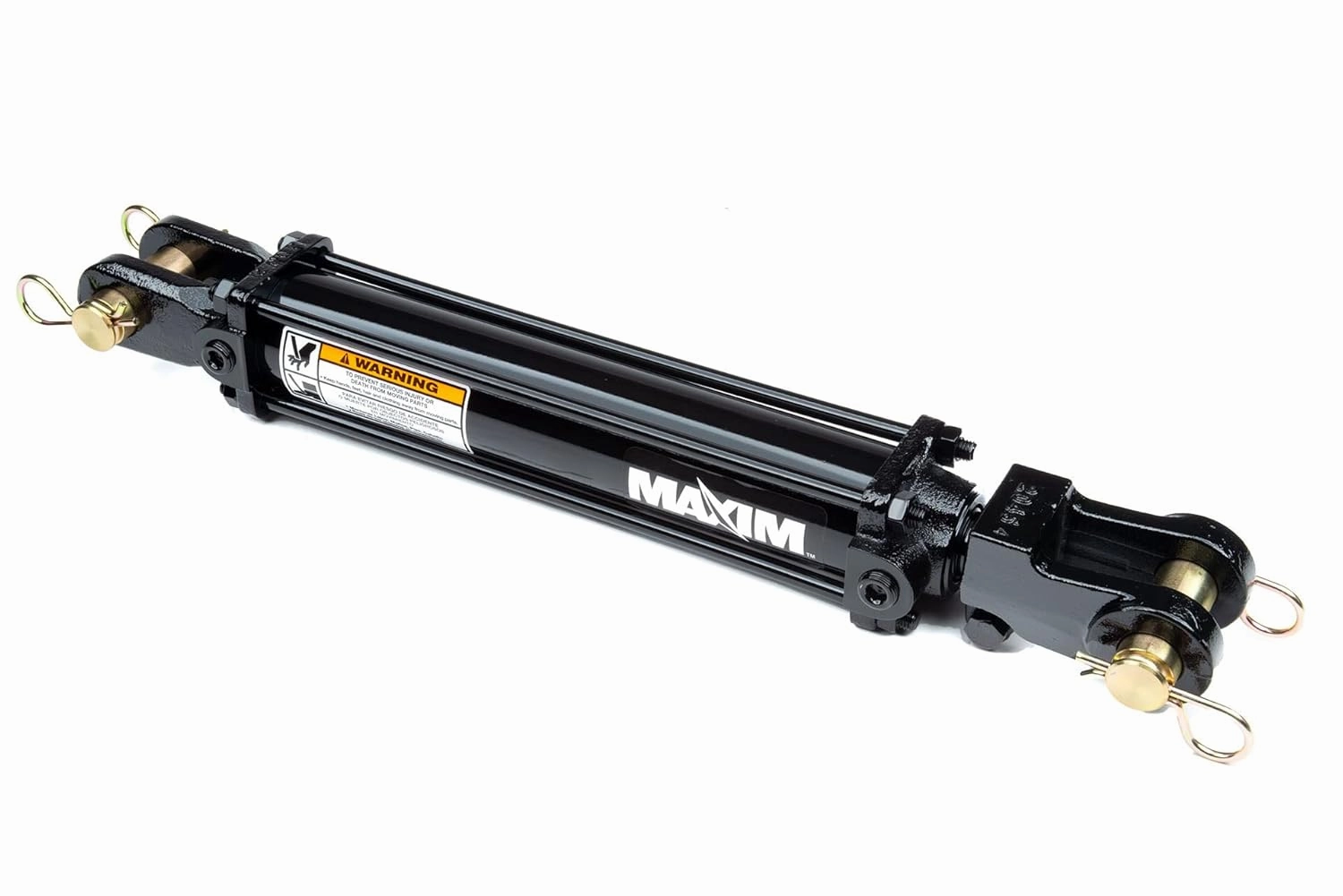

Name: Maxim TC Double Acting Hydraulic Tie Rod Cylinder - 3.5 Bore Hydraulic Cylinder - Tie-Rod Cylinder for Double Acting Applications - 3.5” Bore, 30” Stroke, 2500 PSI, 40.25'' Retracted - 1/2 NPT Ports
SKU: 756820

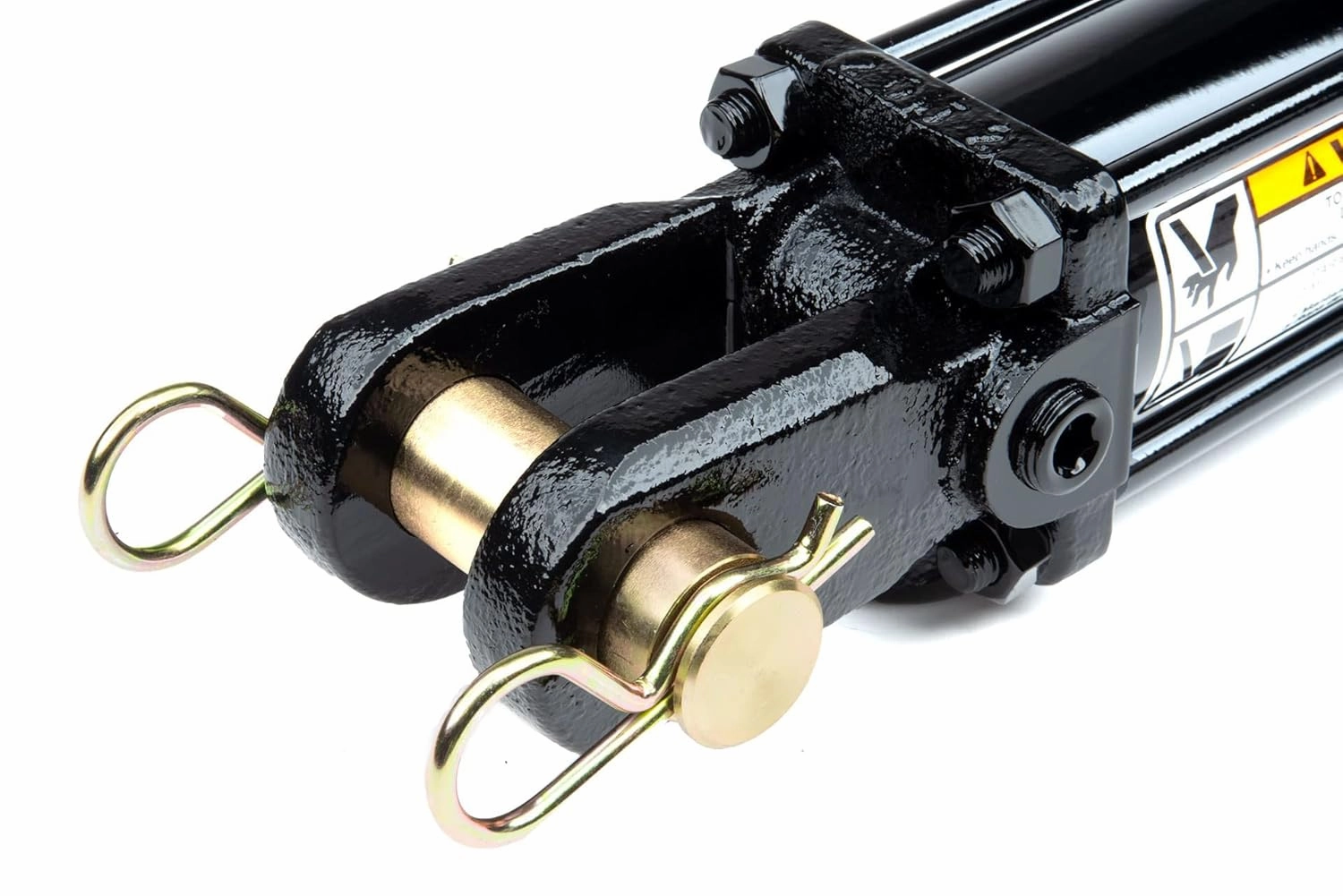

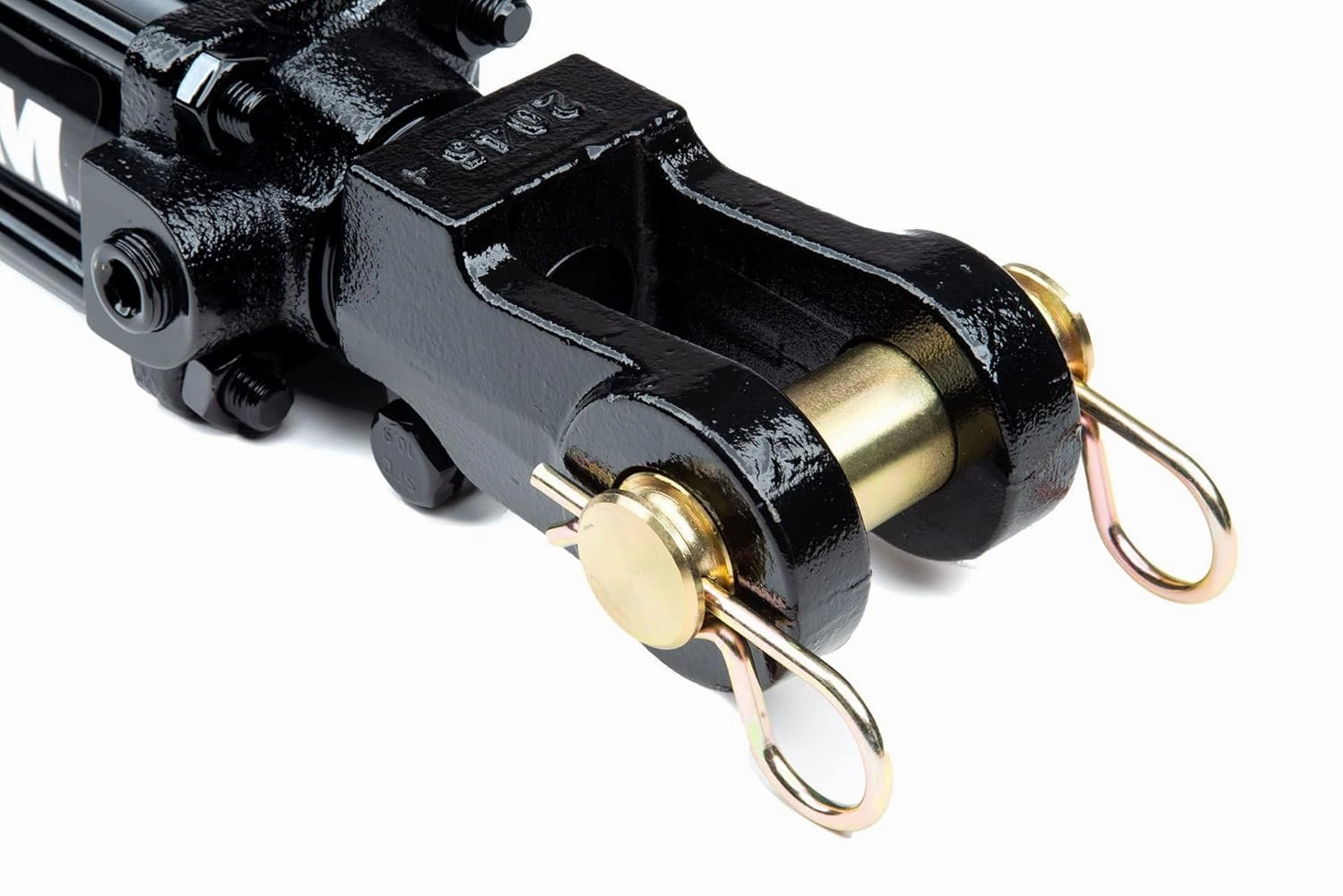

SPECIFICATIONS: Maxim’s hydraulic cylinders has a 3.5” bore with 1” pin, 1.5” rod with a maximum stroke length of 30,” 1/2 " NPT Ports with 2500 PSI and column load of 11480 lbs. It measures 40.25” when retracted and 70.25” when fully extended.
HEAVY-DUTY: With a maximum working pressure of 2500 PSI and column load capacity of 11480 lbs, this tie-rod cylinder for double acting applications is made for rugged agricultural applications that require reliable and consistent performance.
EASY TO USE: Our double acting hydraulic cylinder has a simple but compact design that can be easily installed and disassembled. These tie-rod hydraulic cylinders are manufactured per strict NFPA standards and are interchangeable.
VERSATILE: This double action hydraulic cylinder is adaptable - it comes in customizable bore sizes from 2” to 4” and stroke lengths from 4” to 48”. Although made for rugged agricultural use, the tie-rod cylinder can be used in exacting applications.
LONG LASTING: Made from top-grade ductile iron with hard-polished chrome plating, this 30 stroke hydraulic cylinder is equipped with Buna N O-ring and zinc seals. It is durable and not susceptible to damage from wear and tear.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 49 x 6 x 6 inches; 65 Pounds
Date First Available ‏ : ‎ May 19, 2017
Manufacturer ‏ : ‎ Bailey International
Country of Origin ‏ : ‎ China

Maxim TC Double Acting Hydraulic Tie Rod Cylinder - 3.5 Bore Hydraulic Cylinder - Tie-Rod Cylinder for Double Acting Applications - 3.5” Bore, 30” Stroke, 2500 PSI, 40.25'' Retracted - 1/2 NPT Ports

Product Details
