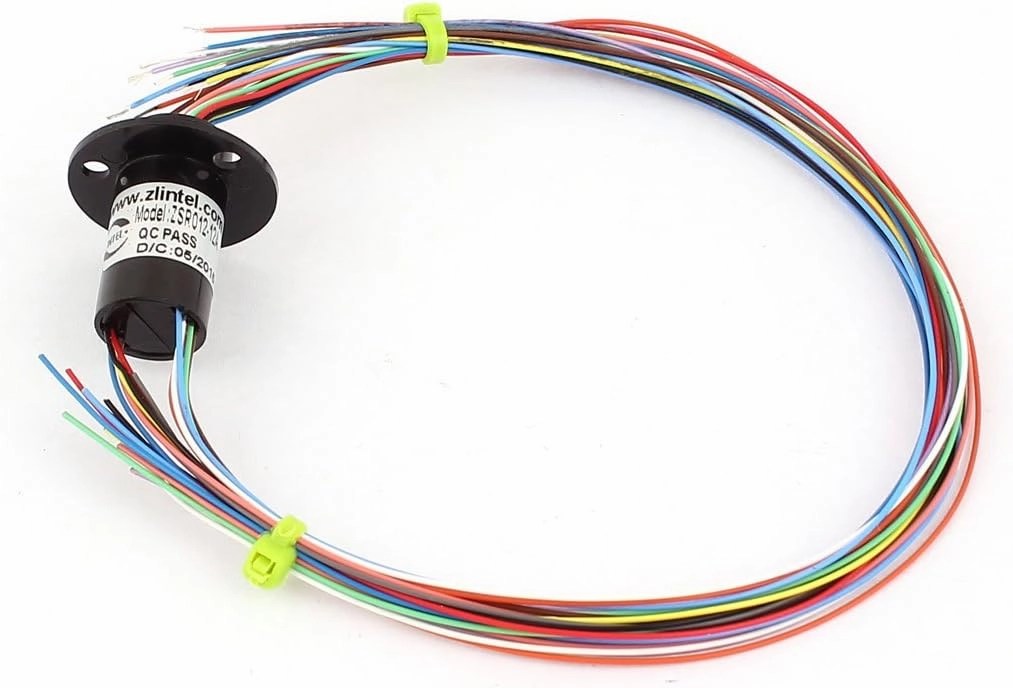

12.5mm 12 Wires 12A AC/DC250V MicroCapsule sli_p Ring Test Equipment
The Capsule sli_p ring is a quality, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive sli_p ring. - Used advanced technology to design, lower consumption.- Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter- Can combine signal and power in same sli_p ring,completely satisfy 360 degrees of rotation- Precision module provides long time maintenance –free operation(no cleaning or lubrication required)
Description in French
12.5mm 12 Wires 12A AC/DC250V MicroCapsule sli_p Ring Test Equipment
Product Name : Capsule sli_p Ring;Operating Speed : 0-300 Rpm;Number of Circuits : 12
Housing Material : Engineering Plastics;Voltage : AC/DC240 V~AC/DC380V;Dielectric Length : Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
Outside dia : 12.5mm;Insulation resistance : 1000 Mω @ 500 VDC;Work Humidity : 60%RH or higher
Work Temp : -40Celsius Degree~ 80Celsius Degree;Work life : Depending on speed and working environment, ≥50,000,000 runs ref;Contact material : Gold plated ring-Gold plated brush
Electrical noise : ≤10mωWeight : 13g;Package Content : 1 xCapsule sli_p Ring
