- RF Pass Band: 5-1002MHZ RF Stop Band: 1125-1525MHz Band Rejection: 1125-1525MHz>5dB
- Insertion Loss: PASSBAND 5-42MHz 42-550MHz 550-1002MHz STOPBAND <1.5dB <0.1dB <0.4dB <1.5dB>35dB
- Return Loss: 5-1002MHz 15-550MHz 550-1002MHz 1125-1525MHz <14dB =22dB =17dB <1.5dB
- Surge Current Rating: IEEE 6KV A3 RING WAVE RFI:>100dB Group Delay: 5-1002MHz (3.58MHz) <5 nSec OPS Tempurature: -40-140°F -40-60°C Pressure Integrity: <15 psi Weight: 1.6 ounces 45.4 grams Dimensions: .519 x 2.29 inches 13.2 - 58.2mm

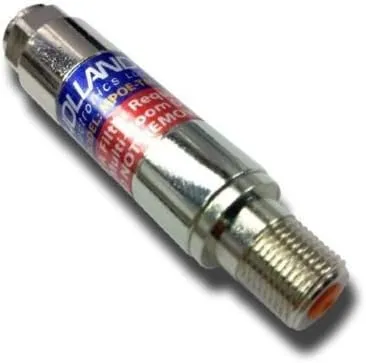

Holland Electronics MPOE-TM MoCA P.O.E. Point of Entry Filter for Cable TV The Holland POE filter Model MPOE-TM was developed specifically for use on Cable TV subscriber premise internal coaxial network's wiring. The filters purpose is to BLOCK MoCA network generated data streams from exiting the subscriber's dwelling and interfering with other neighborhood MoCA networks. The Filter also improves MoCA network's throughput by improving the data paths micro reflections. Features: Return Loss 20 dB Typical Out-of-Band Rejection of up to 70dB Available 6KV Surge Survivability High-Performance Seizing Pin Enviromentally sealed to prevent ingress of moisture and humidity EMI Shielding> 130dB Meets or Exceeds all SCTE Specifications Compact Size Approved for use in Time Warner Cable systems & other providers including TiVO utilizing MoCA for whole house DVR apps
