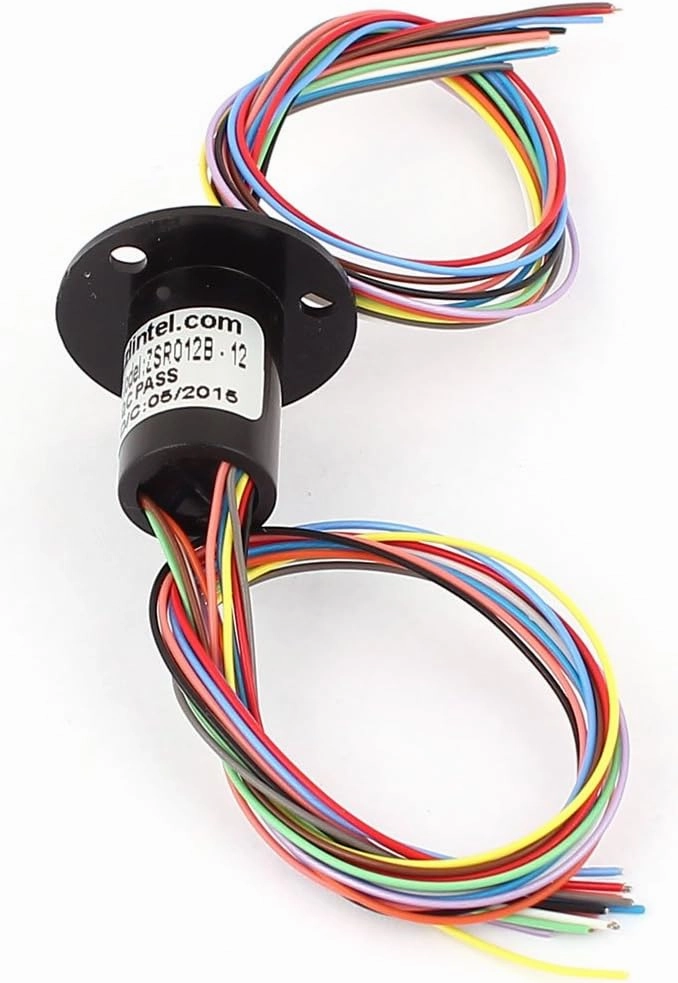

- Product Name : Capsule sli_p Ring;Operating Speed : 0-250Rpm;Number of Circuits : 12;Per Wire Current : 2A
- Housing Material : Engineering Plastics;Voltage : AC/DC240V;Dielectric Length : Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
- Outside dia : 12.5mm;Insulation resistance : 1000 Mω @ 500 VDC;Work Humidity : 60%RH or higher
- Work Temp : -40Celsius Degree~ 80Celsius Degree;Work life : Depending on speed and working environment, ≥50,000,000 runs ref;Contact material : Gold plated ring-Gold plated brush
- Electrical noise : ≤10mωWeight : 10g;Package Content : 1 xCapsule sli_p Ring
Description:The Capsule sli_p ring is a quality, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive sli_p ring. - Used advanced technology to design, lower consumption.- Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter- Can combine signal and power in same sli_p ring,completely satisfy 360 degrees of rotation- Precision module provides long time maintenance –free operation(no cleaning or lubrication required)
